Item Description:

Features:

• 100% Brand New and High Quality
• The dedicated module RDM630 series of non-contact RF ID card, preclude the use of advanced RF receiver circuits and embedded microcontroller design
• Combined with efficient decoding algorithms, to complete the EM4100 compatible ID card data reception
• This module is convenient to use, the power supply serial connection after for motherboard, when RFID card to enter the card read range, module will be through the UART the card number directly send for
• Receiver sensitivity, high operating current, high stability
• Suitable for access control, time and attendance, charges, anti-theft, Patrol and other radio frequency identification applications
• Frequency: 125KHz
• Interface: TTL RS232
• Voltage:for DC 5V(±5%)
• Current: <50mA
• Working temperature: -10°-+70°
• Storage temperature: -20°-+80°
• Max Humidity: 0-95%
• Working Size: about 46mmx32mmx3mm

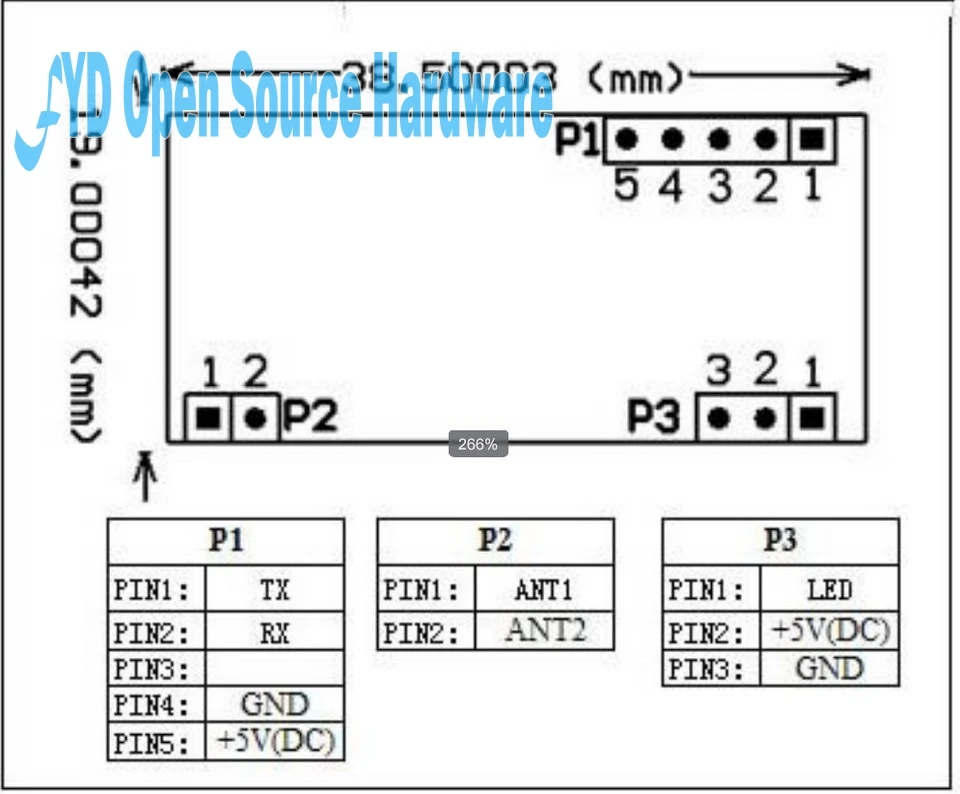

• Module Size: about 38.5mmx19mmx9mm

• 1x 125 KHZ RFID Card Read Module
